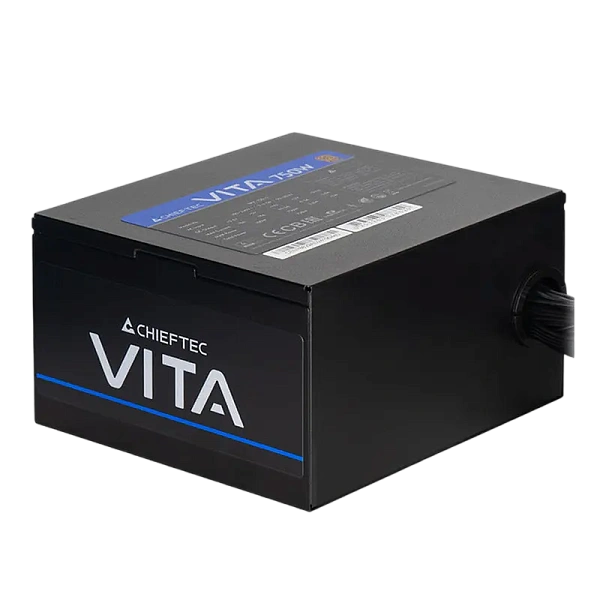

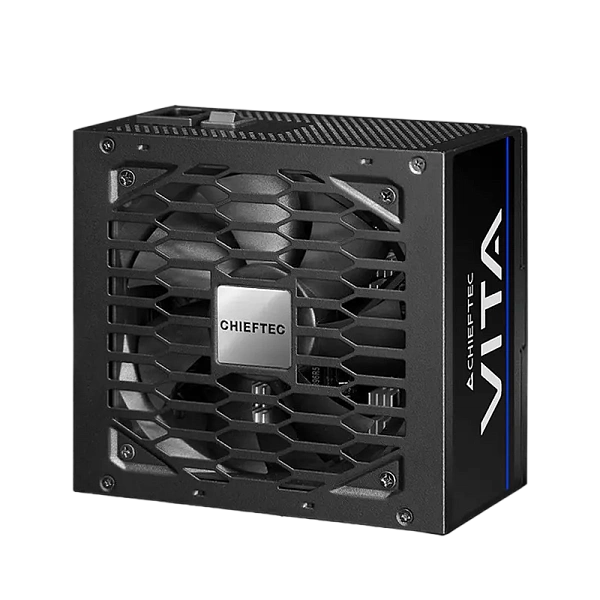

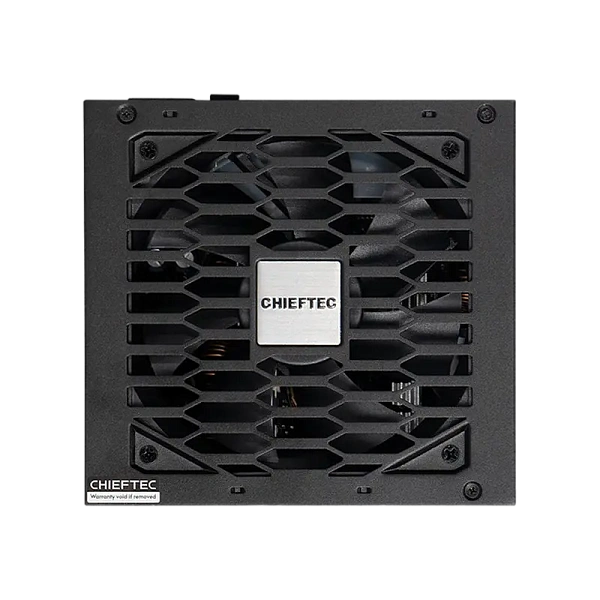

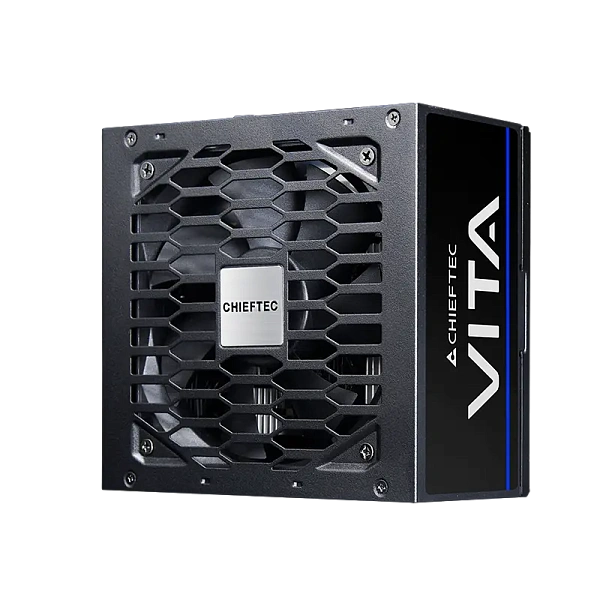

Sursă Alimentare PC Chieftec BPX-850-S, 850W, ATX

.
PN: BPX-850-S

TECHNICAL DATA
Model Vita 850W
Article no. BPX-850-S
EAN code 0753263078636
Weight (without/with package) 1.9kg / 2.7kg
AC Input 100-240V~ / 10-5A
Frequency 50 - 60Hz
+5V 18A
+3,3V 18A
+5V & +3,3V combined 100W
+12V1 70.8A
+12V2 -
+12V1, +12V2 combined 850W
P.F. >0.9
-12V 0.3A / 3.6W
+5VSB 3.0A / 15W
Maximum Power 850W

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 2
8 PIN PCIe (6+2) 4
SATA 6
MOLEX 2

Cable length (mm)
20+4 PIN ATX 650
8 PIN EPS (4+4) 2 x 700
8 PIN PCIe (6+2) 2 x 500/150
SATA/MOLEX 2 x 450/150/150/150


Features
ATX12V Version ATX 12V 2.53
Efficiency 80Plus Bronze
Dimension (DxWxH) 140 mm x 150 mm x 86 mm
PFC Active PFC (0.9)
Fan 120mm FDB fan
Security AFC (Automatic Fan Speed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short-Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
OCP (Over-Current Protection)
