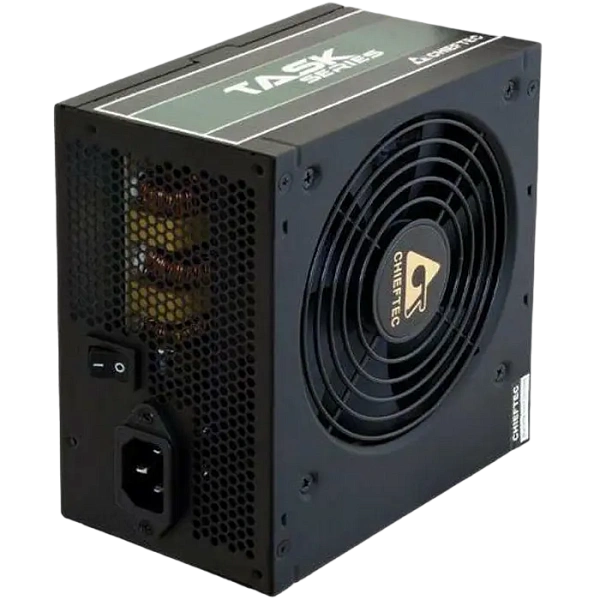

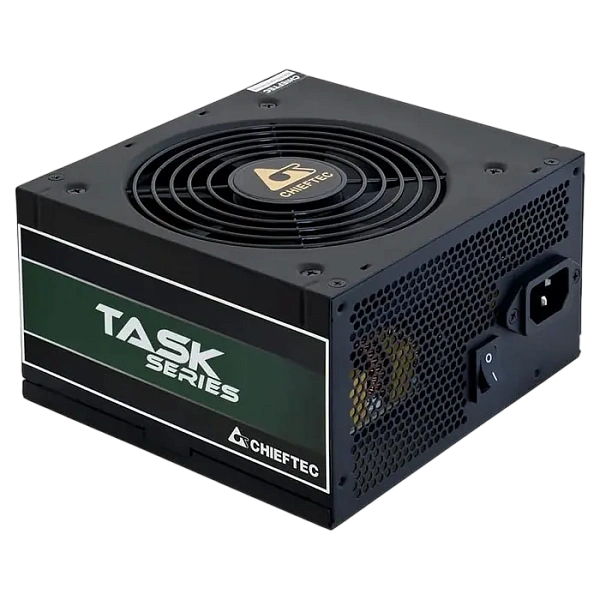

Sursă Alimentare PC Chieftec TPS-700S, 700W, ATX, Nemodular

.
Performance
Model Task 700W
Article no. TPS-700S
EAN code 753263076502
Weight (without/with package) 1.74 kg / 2.15 kg
AC Input 100-240V / 10.0A
Frequency 47-63Hz
+5V 17A
+3,3V 19A
+5V & +3,3V combined 110W
+12V 1 648W / 54A
+12V 2 -
+12V 1 & +12V 2 combined -
P.F. >0,9
-12V 0,3A / 3,6W
+5VsB 2,5A / 12,5W
Maximum Power 700W

Connectors
24PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN PCIe (6+2) 2
SATA 6
MOLEX 3

Cable length
24PIN ATX 650
8 PIN EPS (4+4) 650
8 PIN PCIe (6+2) 500/150
MOLEX 500/150/150
SATA 500/150/150
SATA 500/150/150

Features
Specification ATX 12V 2.3
Form factor PS II
Efficiency 80 PLUS® Bronze
Dimension (DxWxH) 140 mm x 150 mm x 87 mm
PFC Active PFC (0.9)

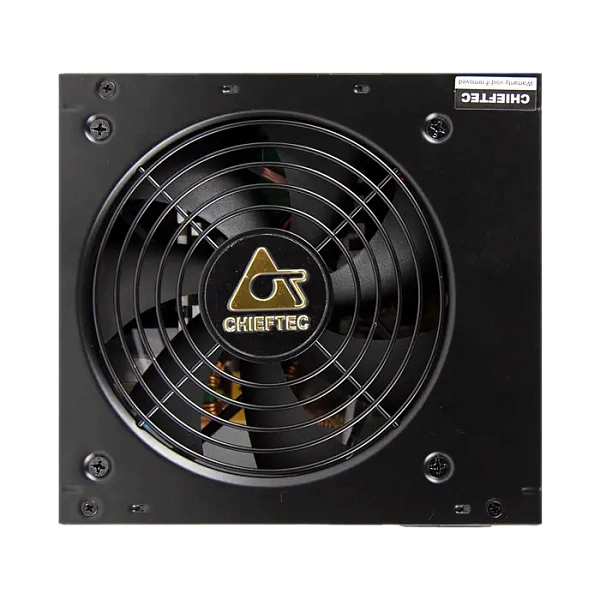

Fan 120mm silent fan
Security AFC (Automatic Fanspeed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Undervoltage Protection)
Warranty 24 Months
